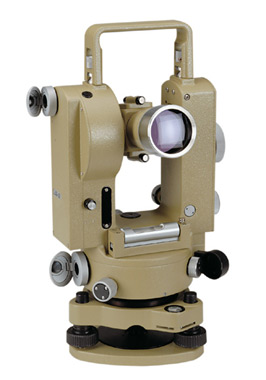

Teodolite J2-2

Teodolite J2-2
SOUTHGEOSYSTEMS
J2-2
kg
Aggiungere al carrello
  • Descrizione
  • Specificazioni

Questo strumento permette di effettuare tutti i lavori di rilievo, tracciamento, squadro e allineamento necessari presso i cantieri edili e stradali. Di grande precisione.

J2-2

Model

J2-2

Accuracy

HZ. Standard Deviation in Face Left & Face Right

±2"

V. Standard Deviation in Face Left & Face Right

±6"

Telescope


Erect

Magnification

30×

Objective Aperture

40mm

Shortest Focusing Distance

1.6m

Field of View

1°20'

Multiplication Constant

100

Additive Constant

0

Resolution Power

3"

Circle

HZ

Ø90mm

V

Ø70mm

Graduation

20'

Min. Interval

1"

Auto Vertical Index (Magnetic Damp)

Working Range

±3'

Setting Accuracy

±0.3"

Reading Microscope

HZ.

48×

V.

62×

Bubbles

Circular

8'/2mm

Plate

20"/2mm

Optical Plummet

Magnification

3×

Focusing Range

0.3-6m

Field of View

7°30'

Standard

Accessories

Adjusting Pin

Bulb

Cotton Cloth

Lens Cap

Plumb Bob

Rain Cover

Screwdriver

User Manual

Optional

Diagonal Eyepiece

Central Thread

5/8"×11

Packing Details
1pc per Carton; 11kgs per Carton;
Dimensions per Carton: 0.04CBM (47cm×28cm×30cm)
Dimensions per Carton: 0.10 CBM (53cm×36cm×53cm
