Teodolite Kolida NT023

Kolida NT023
KOLIDA
NT023-A300550
kg
  • Descrizione
  • Altri Dettagli
  • Specificazioni

Teodolite Elettronico Kolida NT023, Misurazione delle distanze fino a 300 m con Prisma. Cambia il concetto di Teodolite, grazie alle sue dimensioni ridotte ma prestazioni elevate, Schermo LCD da 2,7 pollici con batteria ad alta capacità Offre una soluzione migliore per il progetto di rilevamento esterno

Teodolite elettronico Kolida NT023, Misurazione delle distanze fino a 300 m con Prisma. Cambia il concetto di Teodolite, grazie alle sue dimensioni ridotte ma prestazioni elevate, Schermo LCD da 2,7 pollici con batteria ad alta capacità Offre una soluzione migliore per il progetto di rilevamento esterno

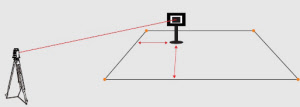

 Axes Stake Out

choose the relative axes to stake out based on the points'

position when doing the project. With this powerful Axes

Stake Out function, NT-023 will help you find the stake out

point precisely in an easier method



Two Methods to Stake Out the Axes

A: Occupied Pt

B: Target Pt

Set NT-023 on one end

of the axis



P: Occupied Pt

A/B: The end of axes

Set NT-023 on an arbitrary point





• Full numeric keyboard enables user to quickly enter angle value

• 7 hot-keys to turn on mode/ program/ backlight/ prism constant/ plummet/ pointer/ e-bubble

• Electronic bubble, single axis compensation, more precise centering

• 2000 mAh lithium battery support 8 hours work

• Smart backlight display, energy saving design

NT023-EN

Distance Measurement

 (Single Prism)

Range: 300m -

Accuracy: ±(3mm+2ppm*D) -

Measure Time:Continuous: 0.35s, Single 1.5s-

Atmosphere Correction: Auto correction by input parameter-

Prism Constant: Auto correction by input parameter

Angle Measurement

Measure Method: Absolute Encoder -

Diameter of Encoder Disk: 79mm - Min. Display: 1" -

Accuracy: 2" -

Detection Method: Horizontal: Dual; Vertical: Dual

Telescope

Image: Erect -

Magnification: 30x -

Effective Aperture: 40mm - Resolving Power: 3"-

Field of View: 1°30'- Min. Focus Range: 1.5m -

Multiple Constant: 100 -

Additive Constant: 0 -

Stadia Accuracy: ≤0.40%/L -

Tube Length: 155mm

Compensator:

Type: Single Axis

Working Range: ±3' - Accuracy: ±3"

Vial

Plate Vial: 30"/2mm -

Circular Vial: 8'/2mm

Laser Tube -

Wave Length: 635±20nm -

Class II Laser -

Spot Diameter: 5mm/100m - Axis Error: 10"

Laser Plummet  -

Accuracy: ±1.5mm (@1.5m InsHt) -

Spot Diameter: ±2.5mm (@1.5m InsHt) -

Length: 635±20nm -

Class II Laser

Display Unit -

2.7 inches, 160x96 dot -

4 lines display

Power Supply -

Battery: Lithium rechargeable battery -

Voltage: 7.4V -

Continuous Working Hrs: 8 hrs

Environment  -

Working Range: -20℃~50

Dimension -

Size: 165*160*340mm -

Weight: 4.7kg
